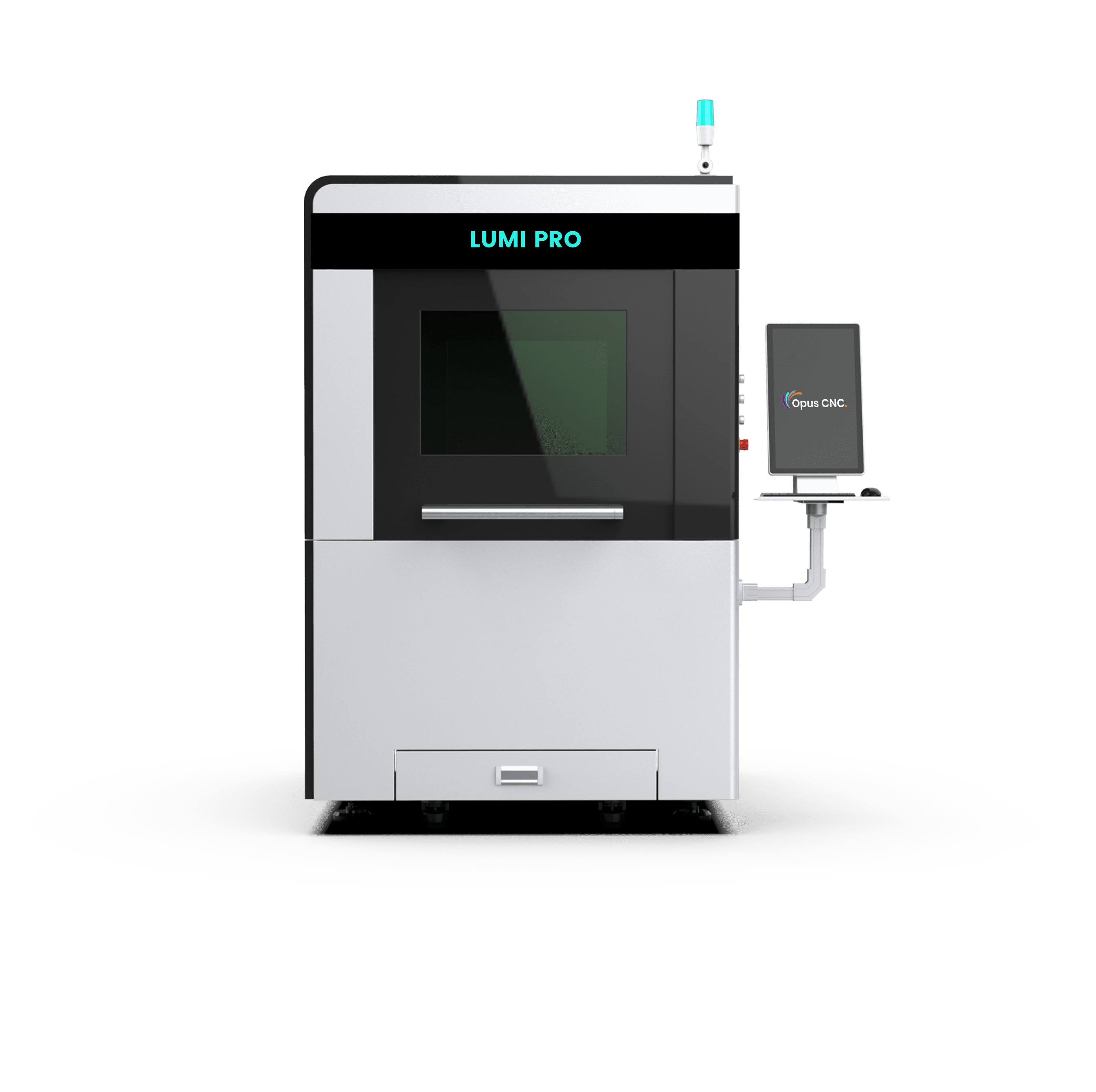

LUMI PRO FIBRE LASER SAMPLES
Overview
Compact
With a smaller footprint, the Lumi PRO high-precision fibre laser cutter fits seamlessly into small spaces without compromising performance, making it ideal for intricate and detailed work.
Japanese Servo Motor & Drives
The Lumi PRO fibre laser is engineered with Japanese Servo motors and drives, ensuring unmatched precision and smooth operation. Known for their reliability and control, Japanese Servo systems provide exceptional accuracy, allowing for intricate detailing and consistent results with every cut.
Raytools Laser Source
Raytools laser sources are known for their high reliability & are manufactured to meet stringent quality standards, making them suitable for continuous use. Alternatively, we can opt for the Max laser source, if required.
Industrial
With rapid cutting speeds, manufacturers are able to complete more jobs in less time, leading to higher production throughput and reduced lead times.
CypCut Control System
CypCut provides an intuitive and user-friendly interface, making it easy for operators to navigate and control the laser whilst also offering advanced features.
Warranty
We offer 2 years full parts and labour warranty with all Lumi PRO fibre laser machines.Â
Delivery
All Lumi PRO fibre machines will be delivered by a curtain-side lorry and will require a forklift to offload. The delivery is included in the price.
Installation
One of the Opus engineers will carry out the full installation. All Opus engineers are experienced and go through vigorous in-house training programs throughout their Opus careers.
Training
Machine and software training is fully inclusive with the Lumi PRO fibre laser and is divided into three sections: machine operation, software, and safety. We customise all training to match individual capabilities.
Want to see more?
Check Out The Oculus Fibre laser in Action Below!
LUMI PRO FIBRE LASER CUTTING DEPTHS
We suggest considering an upgrade to the next power level if you plan to cut materials at their maximum depth capacity. For instance, if you are aiming to cut 6mm aluminium, we recommend a 3kW laser. While a 2.0kW laser can handle 6mm aluminium, it will operate at its maximum power to do so.
1.0kW
1.5kW
2.0kW
3.0kW
Aluminium
Up to 2mm - Ideal
3mm Max Power
Up to 4mm - Ideal
5mm Max Power
Up to 5mm - Ideal
6mm Max Power
Up to 7mm - Ideal
8mm Max Power
Mild Steel
Up to 8mm - Ideal
10mm Max Power
Up to 14mm - Ideal
16mm Max Power
Up to 16mm - Ideal
18mm Max Power
Up to 18mm - Ideal
20mm Max Power
Stainless Steel
Up to 4mm - Ideal
5mm Max Power
Up to 5mm - Ideal
6mm Max Power
Up to 7mm - Ideal
8mm Max Power
Up to 9mm - Ideal
10mm Max Power
Request A Quotation
Want to join our long list of satisfied customers? Then, why not fill in the form to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Want to join our long list of satisfied customers? Then, why not fill in the form below to receive a no-obligation quotation from one of our experienced engineers?
Don’t worry, we won’t hassle any potential customer! All the Opus team are engineers, not sales-people!
Queries & Answers
Is Opus a UK company?
Yes, we are based in the North East of England and we have an extensive team of engineers who work throughout the whole of the UK, including an engineer who is based in Northern Ireland.
What software is supplied?
We supply CypCut which is a highly regarded laser cutting software known for its ease of use, powerful features, and robust performance, making it ideal for the Oculus Luminus fiber laser machines. One of its key strengths is its intuitive interface, which allows users, even those with minimal experience, to quickly and efficiently design, edit, and execute cutting jobs.
Is training included?
Certainly! Our great engineers know how to capture and maintain the interest of their learners. They make training interactive, using practical examples, real-world applications, and engaging activities to keep the learners involved.
Is Delivery Included?
Certainly, your Lumi PRO fibre laser will be delivered by a HIAB lorry. Therefore, a forklift is not required to offload the laser machine.
Do I need 3-phase electric supply?
All Oculus Luminus fibre lasers are 415v (3-phase) supply.
What bed sizes are available?
The bed size for the Lumi PRO fibre laser is 600mm x 600mm.
